Premium DD HiFi TC07S USB C to USB C OTG Cable - HiFi Audiophile Grade for Lossless Audio - Perfect for Smartphones, DACs & Digital Audio Players

Nyx Series Silver Shielded Data Cable (2.0 Version)

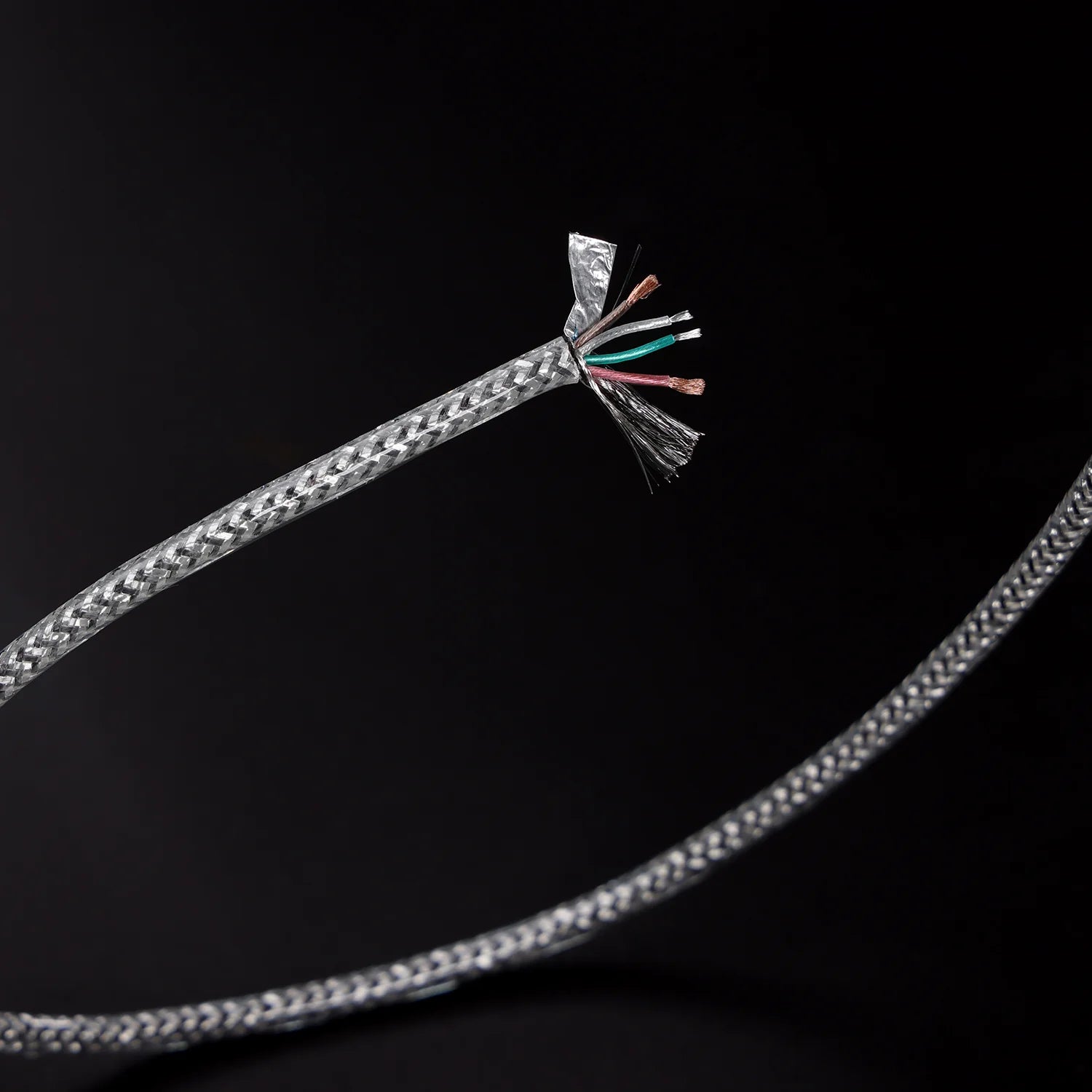

The 1st gen of silver shielded wire was applied to the Nyx 09 series. It uses a relatively complex structure of separate shielding for its power supply and data transmission, which is of great help to devices whose power supply are susceptible to interference. The Nyx 07 series uses the 2nd gen of silver shielded wire, which arranges the power supply and data wires at equal intervals. It also uses imported insulation material and adjusted the density of shielding net, black and white spacing, and outer layer insulation according to the impedance matching. Compared to the 1st gen, the 2nd gen silver shielded wire is smaller and more compact.

Easy to Plug and Unplug

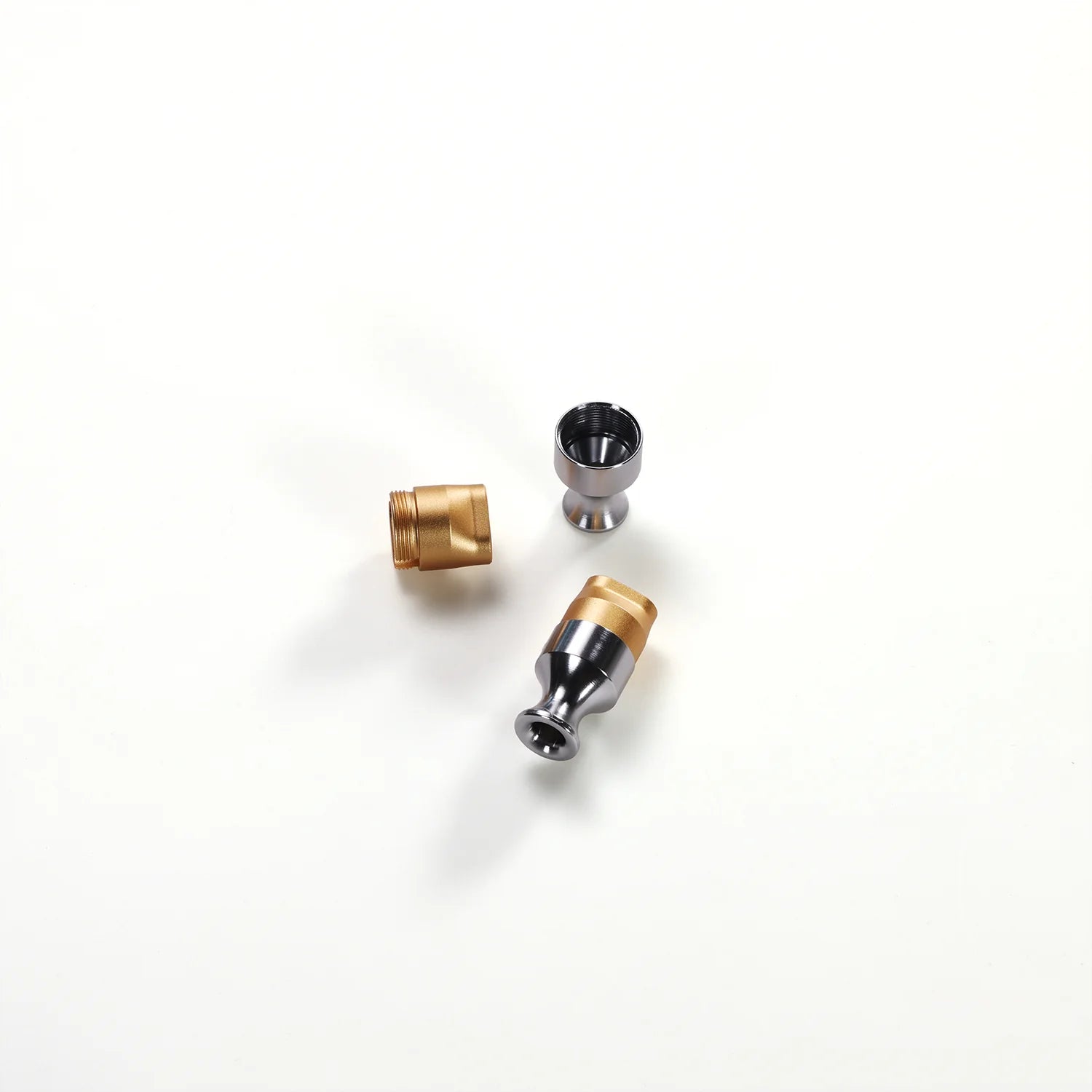

The narrow-waisted and wide-mouthed image is a further extension of ddHiFi 2023 design language. The advantage of this unique design is to make the holding more firm when plugging in and pulling out. Moreover, the arched-edge can also reduce wire creases and the bi-color front and rear cavity structure contributes to the all-round metal shielding of the plug.

Specifications

• Cable Structure: Power & Signal with Shielding
• Inner Insulation: NUC High Precision Chemical Foam PE (Made in Japan)
• Outer Insulation: High Transparency SoftFlex PVC (Made in USA)
• Core Thickness: 27AWG×2
• Core Material: High Purity Litz Type2 4N Solid Core Silver (0.08mm×19×2)
• Core Thickness: 22.9AWGX2
• Core Material: High Purity Litz Type2 Oxygen-Free Copper (0.05mm×19×7×2)
• Shielding Material: Litz Silver Plated over LCOFC
• Cable Diameter: 4.0mm
• Weight/Length: 10g/10cm, 20g/50cm
• Plug: USB-C OTG
