Diamond Audio MSMS694LK 14+ Harley Davidson Cut in Lid Kit with MS69CX - Premium Motorcycle Audio Upgrade for Harley Davidson Bikes | Perfect for Road Trips & Custom Bike Builds

Features:

• Harley Davidson ® 14+ Cit in Lid Kit
• Includes .5” 6” x 9” Spacer Ring

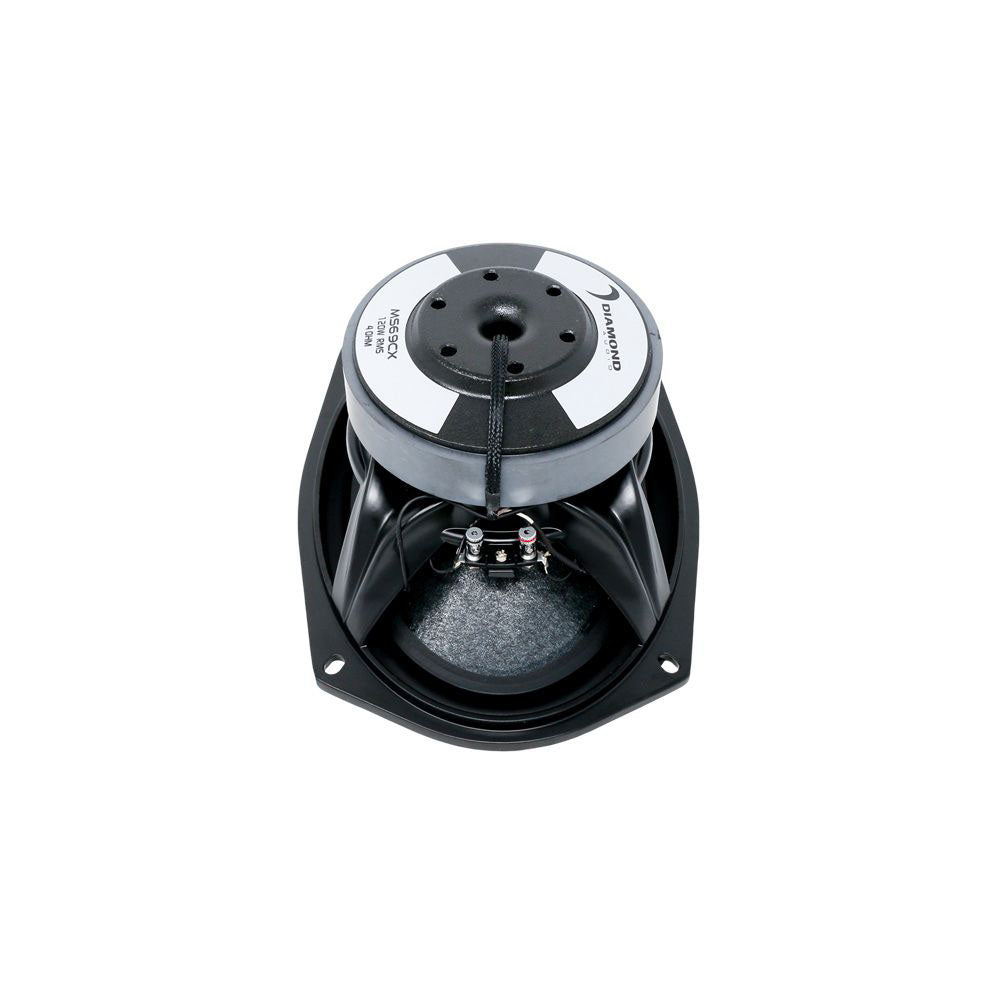

• Includes MS69CX Motor Sports 6” x 9” Marine Grade Speaker
• Includes Plug-n-Play Wire Harness W/ DLED Wiring
• 6 X 9 2-Way High Power Motorsport CoaXSub
• Manufactured to IPx65 Marine Grade Compliant Specifications
• 1" High Output Titanium Dome Tweeter
• UV-Treated Thermal Molded Waterproof Kevlar Cone with Rubber Surround
• 12dB Bessel Crossover Network
• Super High Energy Ferrite Motor System With Milled Aluminum Top Plate
• T-Yoke Back Plate Drilled For 35% More Cooling, Increased Power Handling
• High-Temperature Cast Aluminum Basket

Specifications:

• Speaker Size: 6 X 9
• Description: 2014+ Harley Davidson Cut in Lid Kit with MS69CX - MSMS694LK
• Nominal Impedance (ohms): 4Ω
• RMS Power Rating: 125W
• Max Power Rating: 500W
• Frequency Response: 45-23kHz
• Voice Coil Diameter (inch/mm): 1.4 (35.5)
• Power Handling (RMS/Peak): 125W/500W
• Types: 2-way
• Qts: 0.783
• Fs-Free Air Resonance (Hz): 46Hz
• Vas (Liter): 0.159 (4.5)
• Xmax - Inch(mm): 0.16 (4)
• Sensitivity (1W/1M): 90.5dB
• Sensitivity (2.83V/1M): 93.5dB
• Mounting Diameter (inch/mm): 8.875″ (225.5mm) x 6.125″ (155.6mm)
• Mounting Depth: 3.875″ (98.425mm)
